Yeni Mimaki UJV55-320 geniş format UV-LED inkjet baskı makinesi, eklenen eş zamanlı çift rulo basma özelliğiyle, 3.2m genişliğe kadar afiş, vitrin & sergi grafikleri ve benzeri uygulamaların yüksek hacimli üretimlerinde yüksek kaliteli, ultra geniş baskı sonuçları sunar.
Yüksek yoğunluklu baskı
Dahili LED lamba seti
Anında kuruyan boyalar
| || |
| || |
| || |
| || |
İç ve dış mekan tabelaları, sergi grafikleri, vitrin grafikleri, önden & arkadan aydınlatmalı tabelalar, POS ürünleri ve çok daha fazlası…
|Head||On-demand piezo head (4 printheads / in 2 staggered array)|
|Print resolution||300dpi, 600dpi, 900dpi, and 1200dpi|
|Ink droplet size||Minimum: 7pl Maximum: 36pl|
|Head gap (Manual adjustment)||1.7mm / 1.9mm / 2.6mm / 3.3mm |
(Distance between the platen and the print head)
|Ink||Type||LED-UV ink LUS-120|
|Colour||4 – Colour (C, M, Y, K) / 7 – Colour (C, M, Y, K, Lc, Lm, W)|
|Packaging||1 litre ink bottle, Ink can be filled up to 3 litres per ink colour.|
|Maximum print width||3,200mm|
|Maximum media width||3,250mm |
(Twin rolls printing with a small drive shaft: 1,524mm × 2)
|Minimum media width||210mm|
|Media thickness||1.0mm or less|
|Roll outer diameter||Large drive shafts: Φ250mm or less. |
Small drive shaft with roll holders: Φ180mm or less.
|Roll weight||Large drive shafts: 100kg or less. |
Small drive shaft with roll holders: 25kg or less
|Dimensions (W × D × H)||5,410mm × 995mm × 1,440mm excl. ink supply unit |
5,680mm x 1,220mm x 1,440mm incl. ink supply unit
|Shipping dimensions (W × D × H)||5,714mm × 1,136mm × 1,203mm|
|Power supply||AC 200 – 240V ± 10% 50/60 Hz ± 1 Hz, 18 A or less. |
* 100V Power not available
|Power consumption||4.3kW or less|
|Operational environment||Temperature||20 – 30 °C (68 – 86 °F)|
|Humidity||35 – 65%Rh (No condensing)|
|Temperature accuracy||20 – 25 °C (68 – 77 °F)|
|Temperature gradient||Less than ± 10 °C/h (± 18 °F/h)|
|Dust||0.15mg/m3 (Equivalent to normal office level)|
|UV LED Ink |
All UJV55-320 inks are GREENGUARD Gold certified.
Taking advantage of the 3,200mm printing width, two media rolls can be mounted for simultaneous printing. Different print jobs (or the same print job) can be printed on two separate rolls. The user can the preferred width separately for each roll, within a specified range (210 to 1,524mm).
The UJV55-320 is equipped with Mimaki’s original automatic NCU. Clogged nozzles are automatically detected and cleaned by the NCU. If the clogging is not resolved by cleaning, the UJV55-320 automatically sets the nozzle recovery function NRS and resumes printing. These functions significantly reduce the waste printing caused by clogged nozzles during a continuous printing run.
The NRS substitutes defective nozzles with non-defective nozzles until the technician arrives. This feature enables uninterrupted print operations and continuous productivity.
Improved print head configuration
Head configuration: Four print heads in a staggered array. 1 head: 1,280 nozzles (320 nozzles X 4 lines), Y C M K 4 heads: total 5,120 nozzles.
Waveform Control Technology
Ensures high quality print resolution, by jetting ink drops in straight lines with almost perfect round dots, delivering clear and sharp letters, lines and edges.
Figure A. Without waveform control
Ink droplets jetted in the shape of deformed circles
Figure B. With waveform control
Ink droplets jetted in the shape of nearly perfect circles
Superior inkjet technology
Delivers high density print by removing the gap between dots. Suitable for High speed mode.
MAPS (Mimaki Advanced Pass System)
Reduces banding by dispersing ink drops between passes.

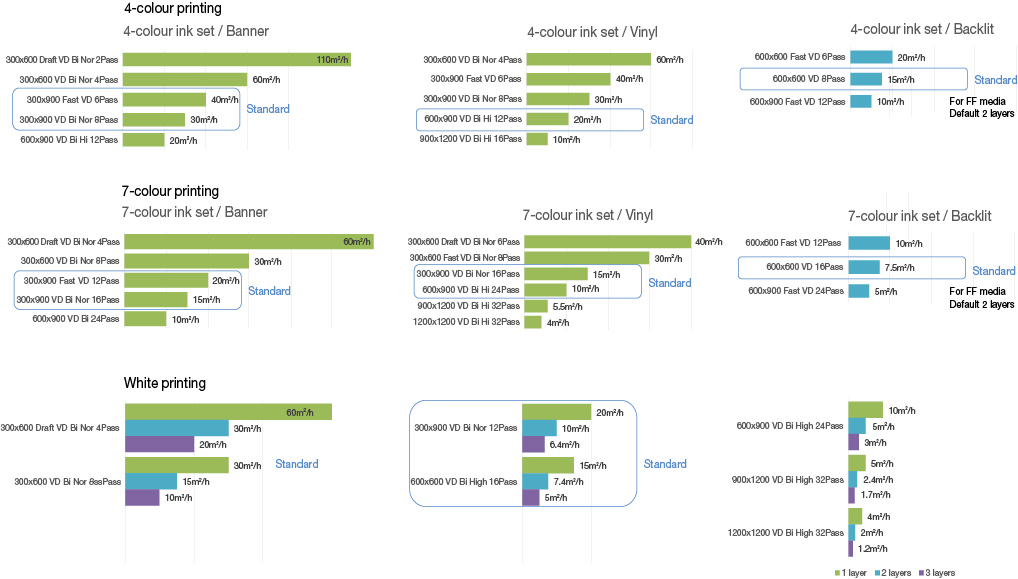

Print Speed (White Printing)
Print Speed (4-Colour)
Print Speed (7-Colour)
Click on the image for details.
White ink print enhancements
Printing on transparent media is made possible by the application of white ink as an under or over layer.
Day & Night Printing on Backlit Materials
Image 1: Colour & White & Colour 3 layers
Printing a white layer between coloured layers, ensures a consistent result whether illuminated or not.
Image 2: Colour & Colour 2 layers
If only 2 layers of coloured ink are applied, the resulting image is too dark when viewed in daylight.
Legenda images 1 and 2:
A1: Colour Ink, A2: White Ink, A3: Colour ink 2 layers, B: Transmitted lights, C: Media, D: Lights, E: Light Source
White ink circulation technology MCT (Mimaki Circulation Technology)
By periodically circulating white ink in line from tank to head, pigment deposition is prevented. MCT ensures stable production and reduction of ink discharge and waste.
Inline LED lightbox for backlit print inspection
Proofing while printing LED backlights illuminate printed media just after printing, reproducing a backlit signage application and ensuring immediate quality inspection.
High ‘Blockout’ performance for backlit signage
A key feature of UV-curable ink is the thickness of the ink layer on the media, which enables much greater ‘blockout’ performance than other print methods. This is particularly beneficial in backlit signage applications where the ability to block out backlighting in certain areas improves overall illuminated colour performance and vibrancy.
